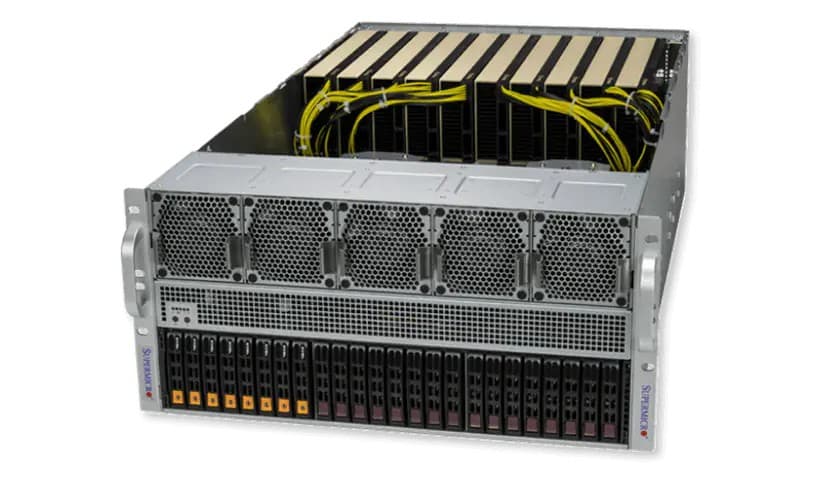

EMARQUE AI Server

8× NVIDIA RTX PRO 6000 Blackwell Server Edition (96 GB GDDR7 each) in a 4U PCIe rackmount reference platform. Available through EMARQUE.

Contact us about AI ServerCompare systems
EMARQUE AI Server — built by EMARQUE in Malaysia
768GB GDDR7 max
8PCIe Gen5 cards
4UAir-cooled
Architecture

Under the hood.

The four sub-systems that determine real-workload behaviour. We tune each before delivery.

GPU complex
  • Up to 8 × NVIDIA RTX PRO 6000 Blackwell Server Edition (96 GB GDDR7 each)
  • 24,064 CUDA cores · 752 5th-gen Tensor cores · 188 4th-gen RT cores per GPU
  • FP4 / FP6 / FP8 inference acceleration (5th-gen Tensor)
  • PCIe Gen5 ×16 per card — no NVLink on this generation of RTX PRO
CPU + memory
  • Dual AMD EPYC 9745 (128 cores Zen 5 'Turin') or 9755
  • Alternative: Dual Intel Xeon Platinum 8570 / Granite Rapids
  • Up to 256 PCIe Gen5 lanes total across both sockets
  • Up to 2 TB ECC DDR5-6400 across 24 DIMM slots (RDIMM)
Storage & networking
  • Up to 60 TB U.2 / U.3 NVMe (PCIe Gen5)
  • RAID 0/1/10 across NVMe; optional hot-swap SAS/SATA bays for archive
  • Dual 25 GbE on-board (SFP28 or RJ45)
  • Optional 100 GbE Mellanox / Broadcom NICs · InfiniBand HDR for cluster scale-out
Power, cooling, management
  • Redundant 2 × 2000 W 80+ Titanium PSUs (200–240 V AC)
  • Hot-swap fans across the chassis
  • ASPEED BMC with Redfish API, iKVM, signed firmware updates
  • Manufacturer factory burn-in and QC per Giga Computing standard
Next step

Tell us your workload. We size the AI Server and quote within one business day.

Configure AI ServerCompare systemsContact us
Full spec sheet

Every line documented at quotation.

Configurable. Final BOM, GPU mix, RAM and storage, and networking topology are confirmed in writing at quotation.

Reference platform
Giga Computing G493-class (4U PCIe) — Supermicro / ASUS equivalents on request
GPU
Up to 8 × NVIDIA RTX PRO 6000 Blackwell Server Edition · 96 GB GDDR7 with ECC
GPU memory bandwidth
1.6 TB/s per card
GPU TDP
300 W passive (server-optimised) — 600 W active variant available
GPU interconnect
PCIe Gen5 ×16 per card (no NVLink — independent cards)
Total GPU memory pool
Up to 768 GB across 8 cards
CPU
Dual AMD EPYC 9745 (128 cores) or Intel Xeon Platinum 8570
Memory
Up to 2 TB ECC DDR5-6400 (24 channels, dual-socket)
Primary storage
Up to 60 TB U.2 / U.3 NVMe (PCIe Gen5, RAID 0/1/10)
Bulk storage
Up to 200 TB enterprise HDD (RAID Z2) — optional
Networking
Dual 25 GbE on-board (SFP28) · 100 GbE optional
Power
Redundant 2 × 2000 W 80+ Titanium PSUs, hot-swappable (200–240 V AC)
Form factor
4U rackmount, 19" rails included
Cooling
Air-cooled with redundant hot-swap fans
Management
ASPEED BMC with Redfish API, iKVM, signed firmware
OS
Ubuntu Server 24.04, RHEL 9, Windows Server 2025
Warranty
Manufacturer warranty (Giga Computing / OEM) · NVIDIA GPU warranty
FAQ

Common questions about AI Server

What is the NVIDIA RTX PRO 6000 Blackwell Server Edition?

Server-optimised variant of the RTX PRO 6000 Blackwell — same Blackwell silicon and 96 GB GDDR7 memory, with passive cooling (300 W TDP) designed to be cooled by the server chassis airflow. Targets enterprise rackmount deployments where the active 600 W variant would be impractical.

What reference platform does EMARQUE use?

EMARQUE supplies the AI Server on the Giga Computing G493-class 4U PCIe reference platform validated for the RTX PRO 6000 SE thermal envelope. Equivalent reference designs from Supermicro or ASUS are available on request. Final BOM is documented at quotation.

Is this configuration customisable?

Yes. GPU count (2 / 4 / 8 cards), memory (256 GB – 2 TB), storage (8 – 60 TB NVMe), networking (25 GbE / 100 GbE / InfiniBand), and OS are all configurable. CPU choice (AMD EPYC vs Intel Xeon) is customer-selectable within the manufacturer's published configuration matrix.

What's the warranty?

Manufacturer warranty applies — Giga Computing / OEM warranty on the chassis and components; NVIDIA's warranty entitlement on the RTX PRO 6000 SE GPUs. EMARQUE handles local warranty claim processing through the manufacturer's authorised channel.

What support does EMARQUE provide locally?

EMARQUE handles in-country delivery, customs, commissioning, acceptance testing, and Tier-1 support response in Malaysia. Tier-2/3 escalation routes to the manufacturer per the warranty entitlement. Optional service contracts for extended response SLAs and on-site engineering visits can be added.

How long is the lead time?

Typical lead times are 6–10 weeks from signed quotation, subject to component availability (RTX PRO 6000 SE supply is ramping in 2026). EMARQUE confirms projected delivery window at order acknowledgement.

If I need NVLink-coherent multi-GPU or HGX-class, what's the upgrade path?

Step into NVIDIA DGX B200 or NVIDIA DGX B300 (or HGX B200 / B300 OEM platforms from Dell, Giga Computing, or Supermicro). Those configurations are presented on the respective NVIDIA DGX product pages — each shows both NVIDIA-branded DGX systems and HGX OEM alternatives.
